PDLC Switching Smart Film Technology

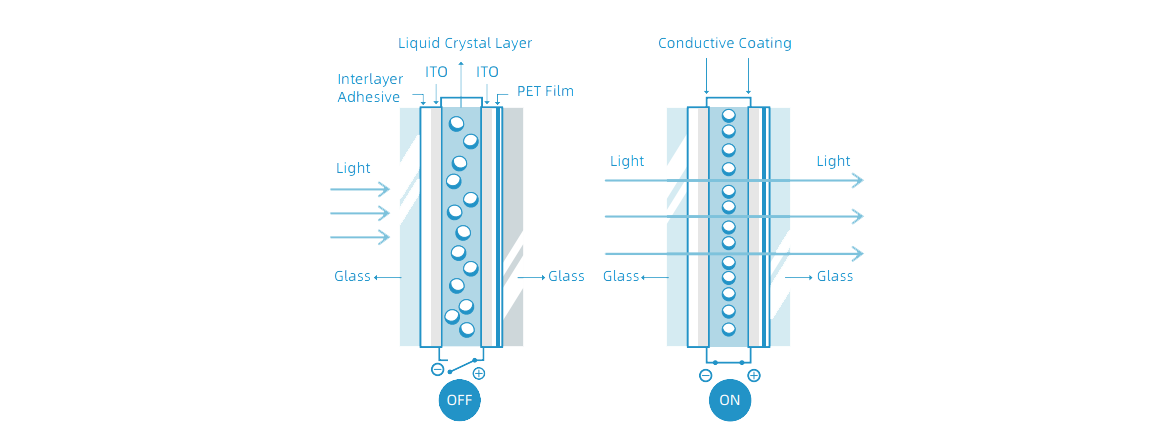

Technical Principles

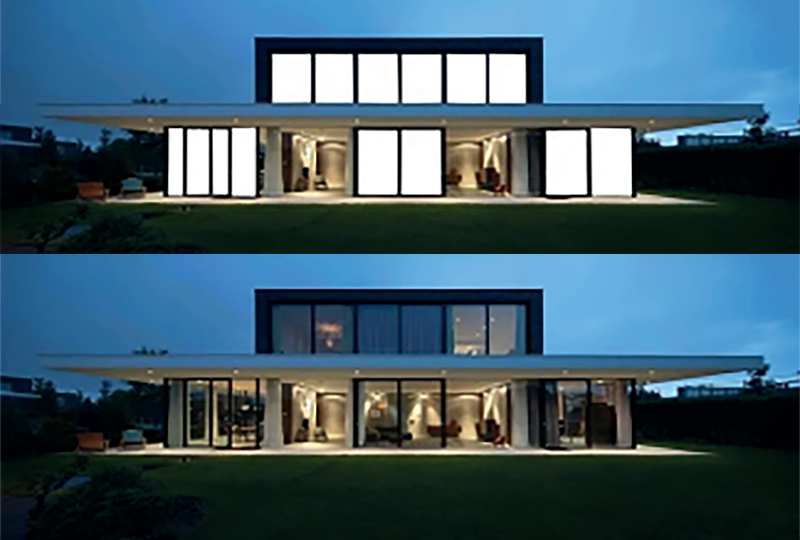

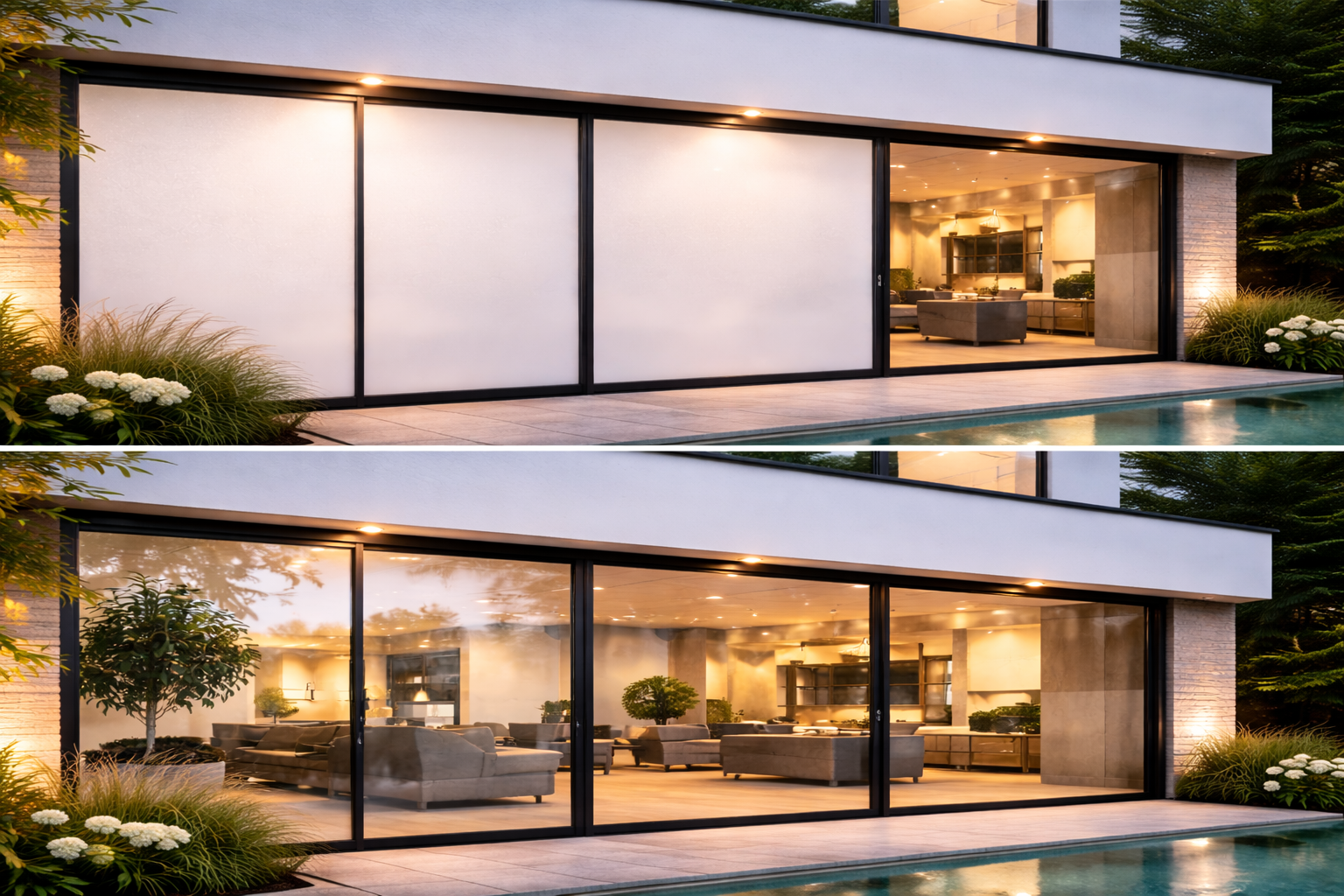

In the absence of an electric field, the electronically controlled PDLC Smart Film is in an opaque state. When an alternating current is applied, the liquid crystal molecules are arranged in an orderly manner, at which point the PDLC Film changes from an opaque state (OFF) to a transparent state (ON).

Advanced Technology for Versatile Applications

PDLC (Polymer Dispersed Liquid Crystal) Films are cutting-edge self-adhesive solutions, designed to seamlessly integrate into both front-end design projects and post-retrofit installations. These films offer unparalleled versatility, enabling architects, designers, and engineers to enhance privacy, functionality, and aesthetic appeal in various spaces.

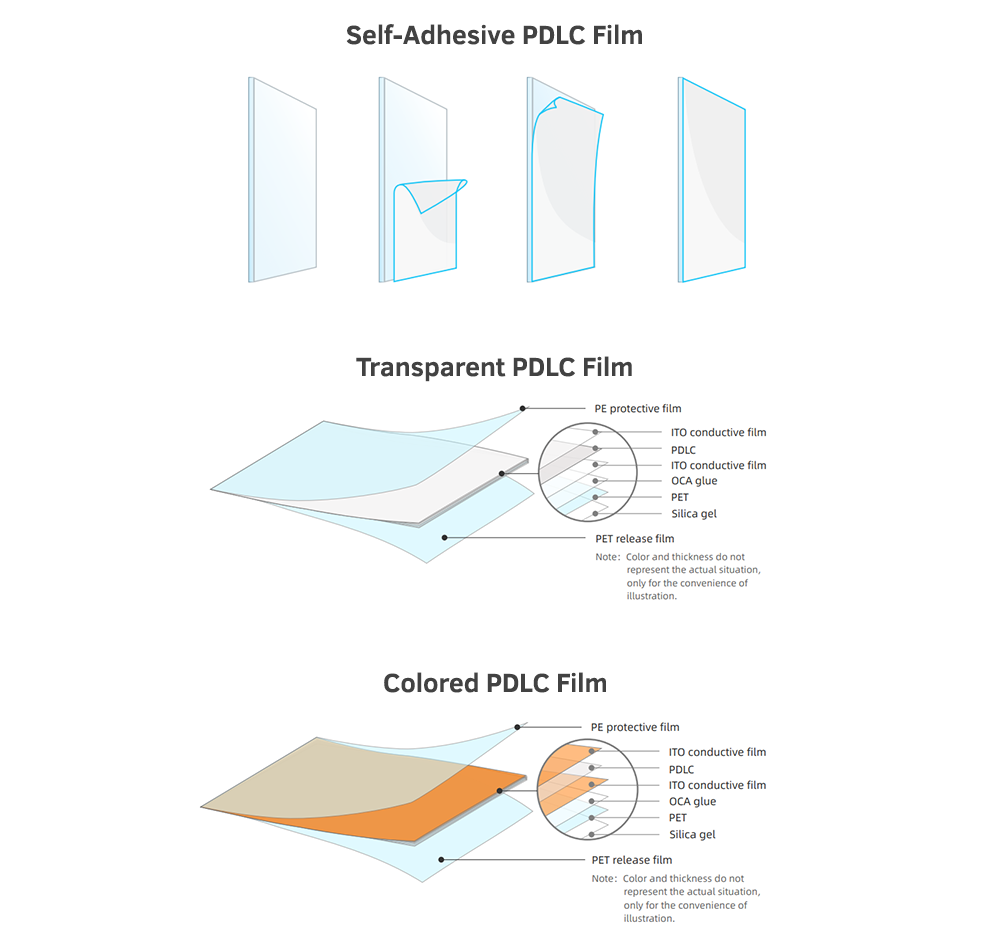

The innovative construction of PDLC Films is what sets them apart. They are composed of multiple high-performance layers, each meticulously engineered to contribute to the film’s superior functionality, durability, and optical clarity. Below is a detailed overview of these layers and their critical roles in delivering the exceptional performance that PDLC Films are renowned for.

PE Protective Film: This outermost layer serves as a shield during transportation and installation, protecting the inner components from scratches and contaminants.

PDLC Layer: The core of the smart film, composed of liquid crystal droplets dispersed in a polymer matrix. When an electrical current passes through, the liquid crystals align, rendering the film transparent. When the current is off, the crystals scatter light, creating an opaque appearance.

OCA Glue: Optically Clear Adhesive (OCA) is used to bond the layers together with high optical clarity, ensuring no loss of transparency or distortion.

Silica Gel Layer: This self-adhesive layer allows for straightforward installation on glass or other smooth surfaces. The silica gel provides a strong yet removable bond, ensuring the film can be repositioned or replaced without leaving residue.

ITO Conductive Film (First Layer): A thin, transparent conductive coating made of Indium Tin Oxide (ITO). This layer facilitates the electrical conductivity required to control the liquid crystals.

ITO Conductive Film (Second Layer): Another ITO layer ensures uniform conductivity across the film, working in tandem with the first conductive layer.

PET Layer: This durable yet flexible plastic layer provides structural support and acts as a carrier for the functional components of the film.

PET Release Film: The innermost layer, removed during installation, protects the adhesive side of the film and ensures its quality before application.

Characteristics & Features

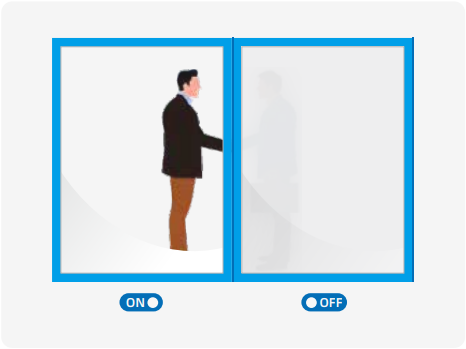

Privacy protection
You can protect your privacy and security by adjusting the level of transparency to suit your needs. Enjoy the flexibility to make your space open or private at any time.

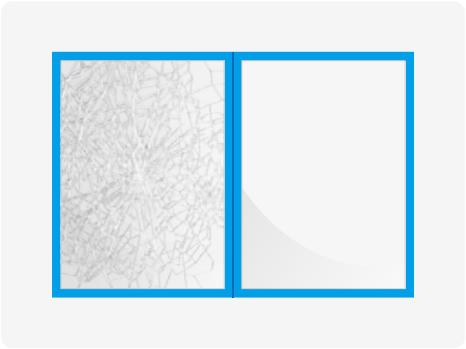

Security
Even if the glass breaks, the fragments adhere to the PDLC film, preventing potential injuries from shattered glass.

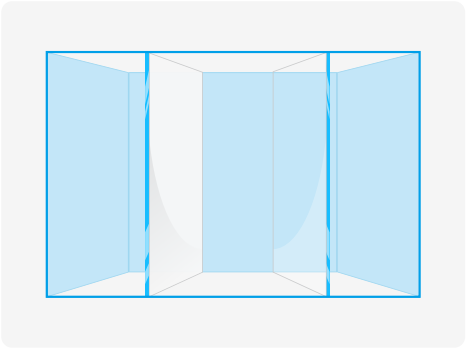

Space Partitioning

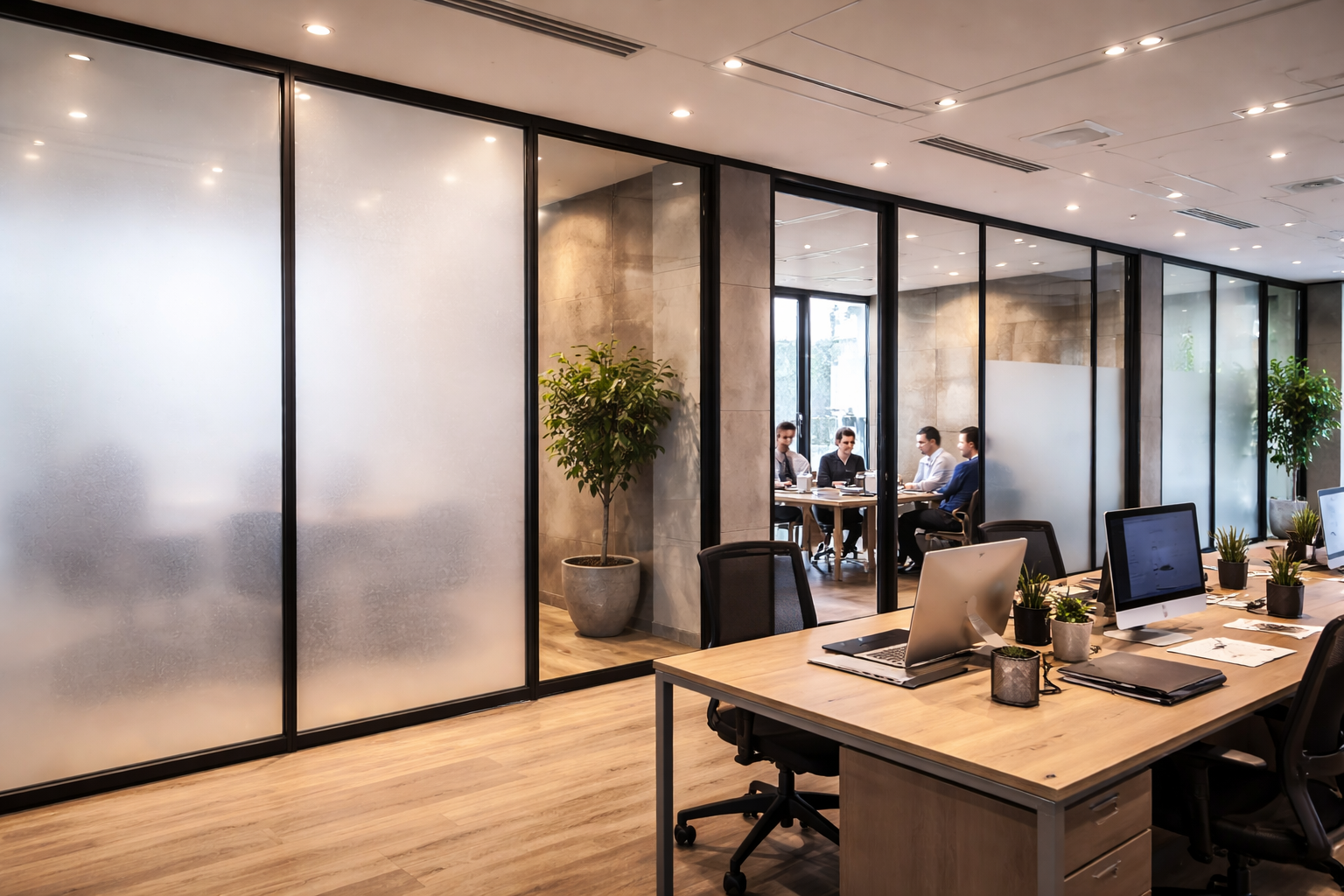

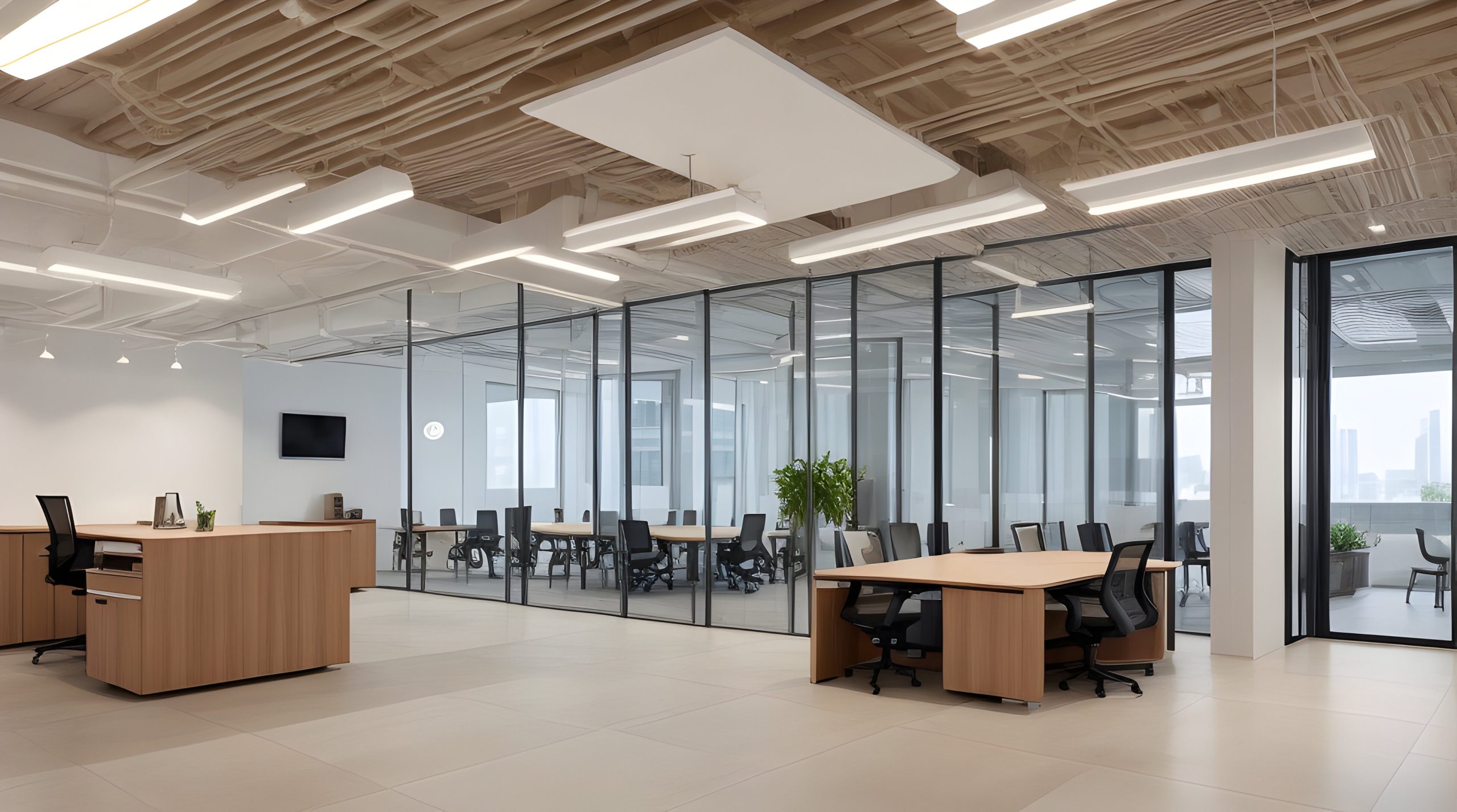

By incorporating PDLC film, glass partitions can effortlessly define distinct areas, enhancing the flexibility and versatility of your three-dimensional space.

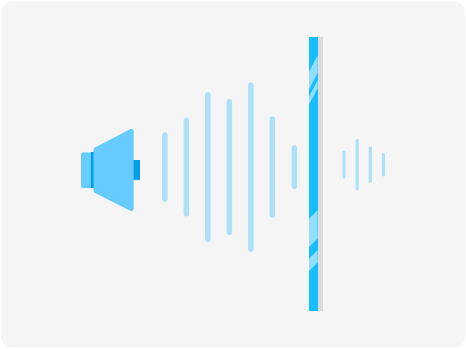

Anti-Noise
Glass equipped with PDLC Smart Film offers a 20% improvement in noise reduction compared to ordinary glass.

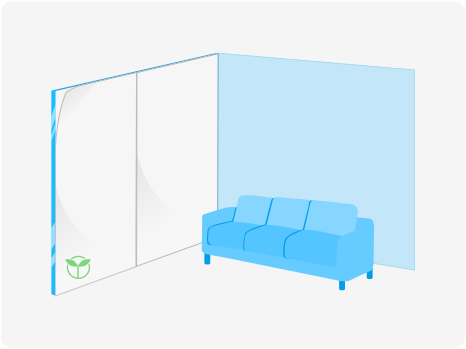

Environmental Protection
Installing PDLC film helps minimize decorative material waste, reducing pollution and promoting environmental protection.

Heat & Scratch Resistance
The product operates reliably at temperatures up to 105℃, ensuring performance even in high-temperature environments. Additionally, the anti-scratch layer safeguards the surface from damage while maintaining the product’s clarity.

Touch Screen & Projection
With a high-definition projector, you can achieve an immersive viewing experience featuring a 180° viewing angle, 4K picture quality, and interactive capabilities. Combined with radar technology, it supports multi-touch and video interaction for enhanced functionality.

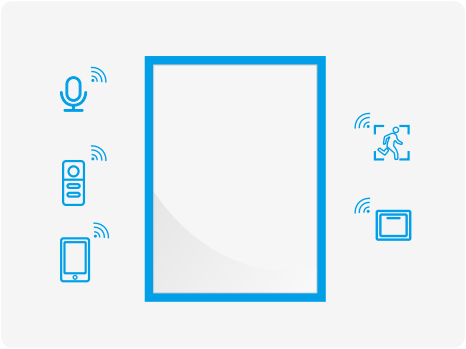

A Variety Of Control Methods
To cater to your diverse needs, you can choose from various control methods, including remote control, wired control, infrared induction, voice control, and mobile applications. Additionally, an FM transformer can be optionally selected to enable gradual film transitions.
